Product Overview
HVLP gravity-feed configuration

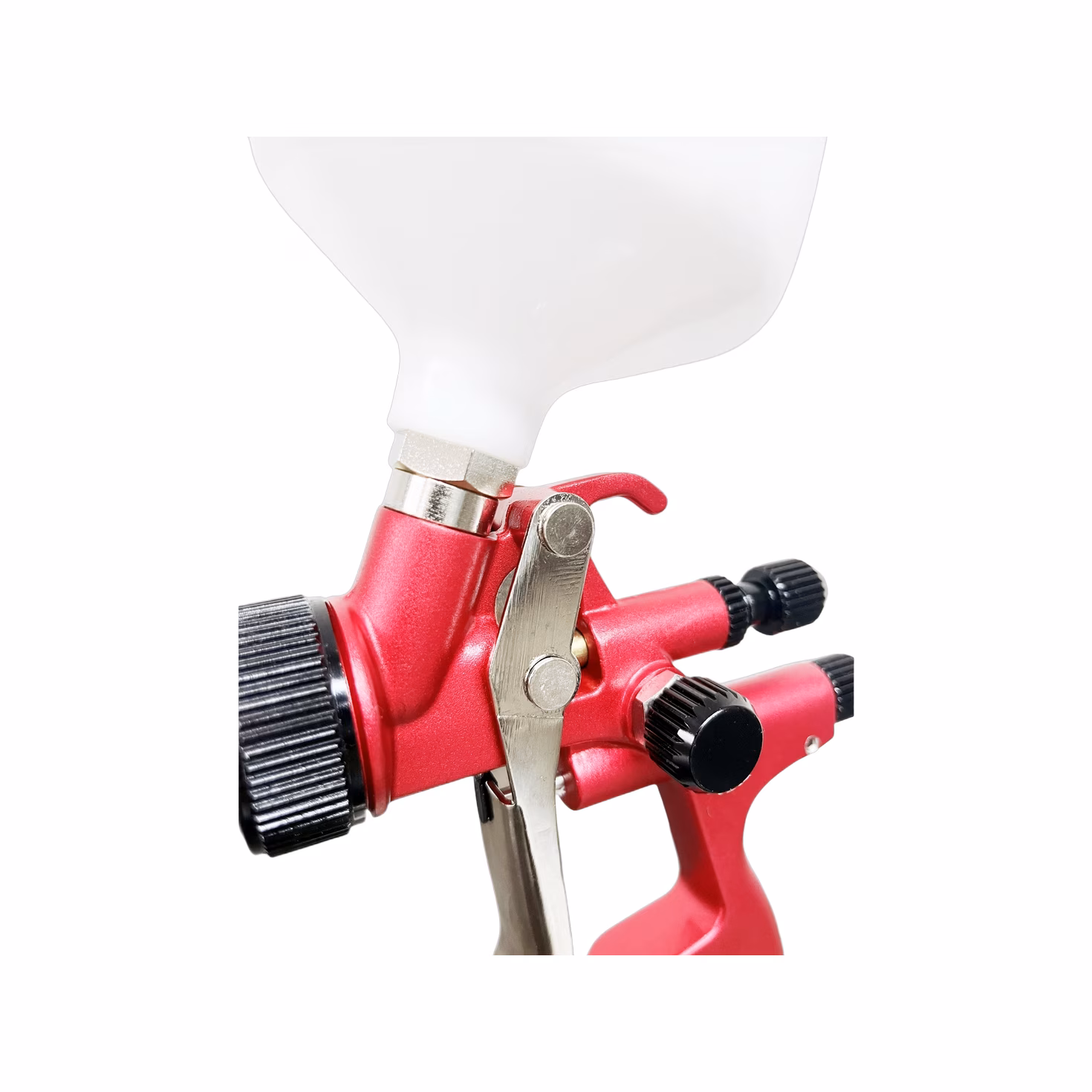

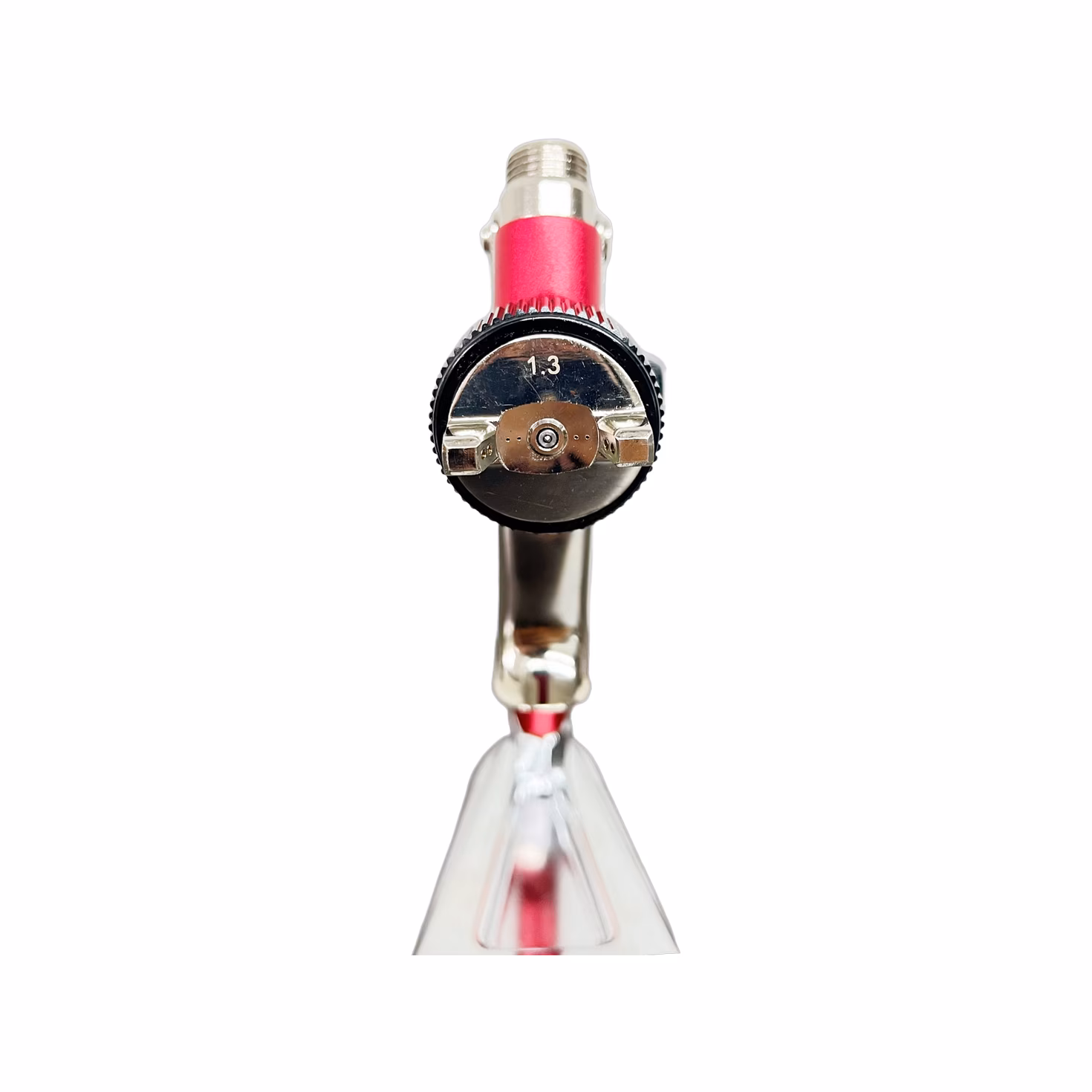

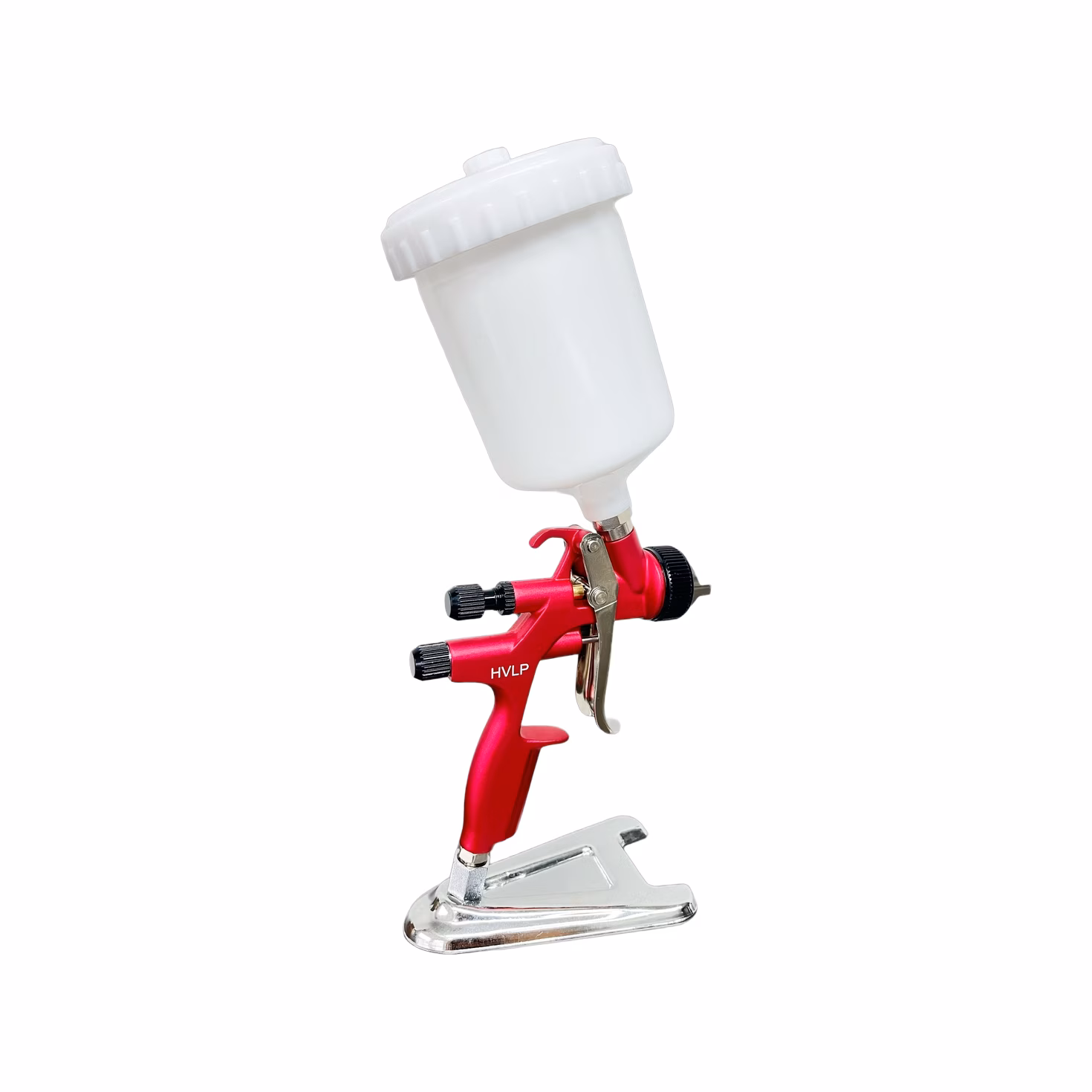

DCRYSTA DSG-2000 is an HVLP gravity-feed spray gun for automotive refinish spraying. Published options include a 1.3 mm standard nozzle and optional 1.4 mm and 1.7 mm nozzles, with a 600 ml paint cup. Choose the tip according to the coating manufacturer's guidance.
Air supply and spray setup
The listed values are 2.0 bar (29 psi) working pressure, 400 L/min air consumption and an 18–20 cm spray distance. Actual atomization depends on coating viscosity, tip, air supply and spraying technique; the published values are starting specifications, not a guarantee of finish quality.
Workshop and distributor selection
Confirm nozzle and replacement-part availability, air system capacity and supplied accessories before ordering. For adjacent panel masking, review the DMT-600UV tape specifications.
Carton packing
| Units / carton | Carton dimensions (cm) | Gross / net weight (kg) |
|---|---|---|
| 10 | 64 × 32 × 22 | 9.0 / 8.0 |
