PRODUCT OVERVIEW

Product Overview

Film backing and abrasive blend

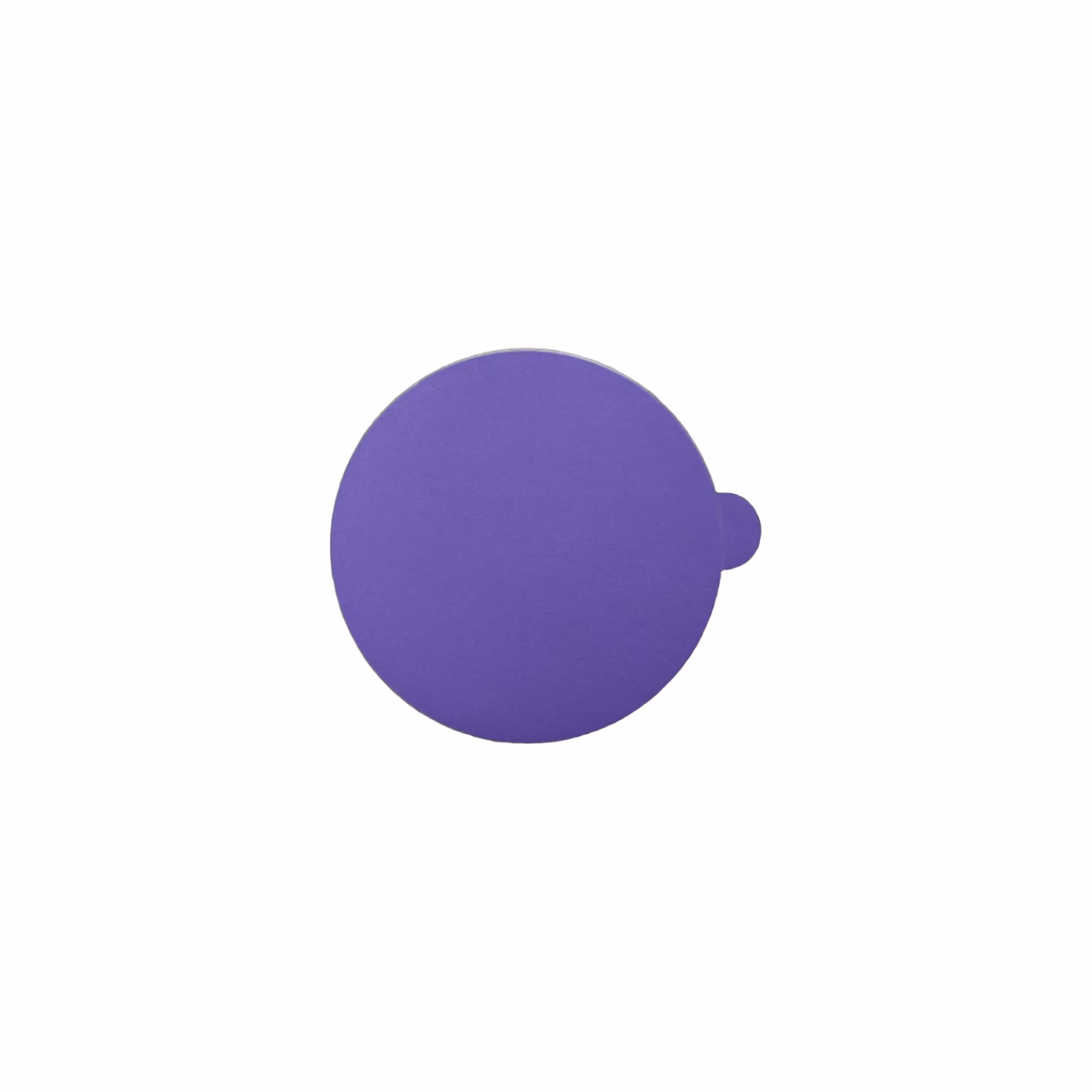

DCRYSTA 138 uses zirconia and aluminum oxide abrasive grains on polyester film, with hook-and-loop attachment and an anti-clogging stearate coating. The stated applications include wet and dry sanding. Select grit for the material and the next coating stage.

Disc and roll selection

The packing table lists 125 mm, 150 mm and 152 mm discs, plus a 70 mm × 12 m roll configuration. Multi-hole variants must match the backing pad and extraction system. Wet use also requires appropriate equipment and process controls.

Packaging and formats

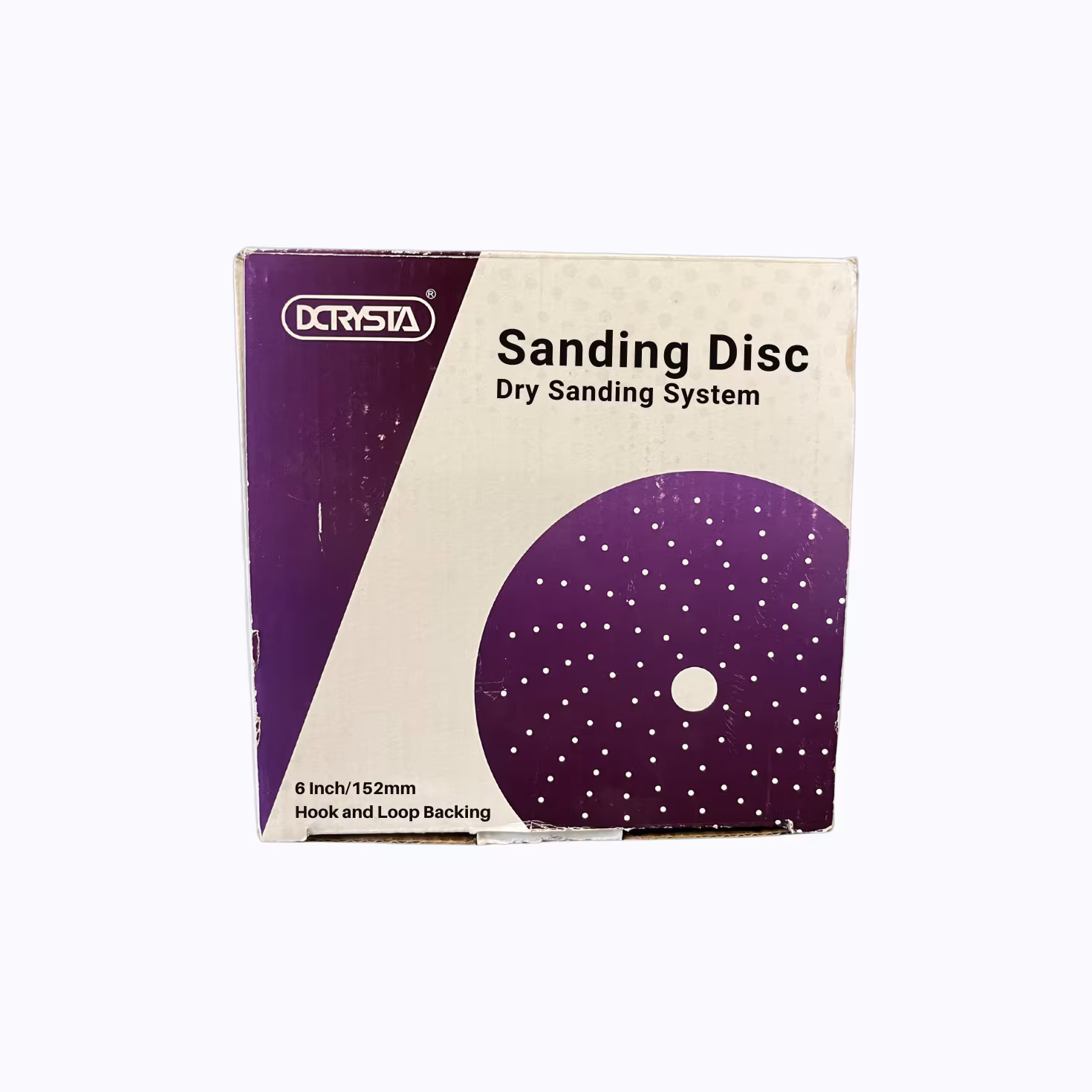

All listed 125 mm, 150 mm and 152 mm disc variants are packed 50 discs per box. The 70 mm × 12 m abrasive roll is listed separately as one roll per box. The carton totals below are retained from the published packing list; confirm current carton configuration when ordering.

Packing

Grit Format Hole pattern Units / box Units / carton Carton dimensions (cm)
P80–P2000 152 mm disc Multi-hole 50 1000 38 × 33 × 33
P40–P80 150 mm disc 0 / 6 / 7 / 15 50 1000 52 × 34 × 34
P100–P2000 150 mm disc 0 / 6 / 7 / 15 50 2000 52 × 34 × 34
P40–P80 125 mm disc 0 / 6 / 8 50 1000 52 × 28 × 28
P100–P2000 125 mm disc 0 / 6 / 8 50 2000 52 × 28 × 28
P80–P400 70 mm × 12 m roll Multi-hole 1 roll 20 rolls 44 × 36 × 36

Listed grit and format availability

Shape Type P40 P60 P80 P100 P120 P150 P180 P220 P240 P320 P400 P500 P600 P800 P1000 P1200 P1500 P2000 P2500
Regular holes disc √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
Multi-holes disc √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
Multi-holes roll √ ⊙ √ ⊙ √ ⊙ √ √ ⊙ ⊙ ⊙ ⊙ ⊙ ⊙ ⊙ ⊙ ⊙
